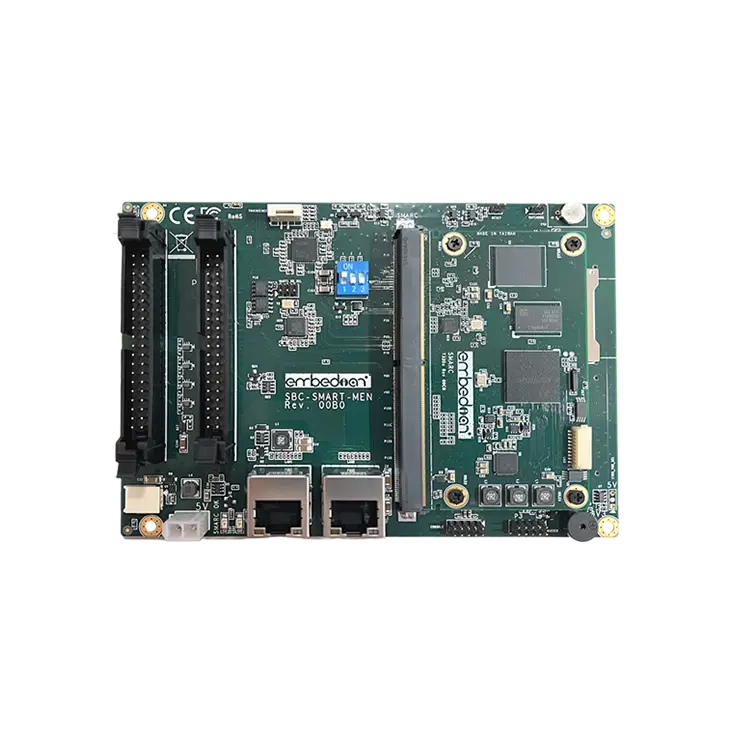

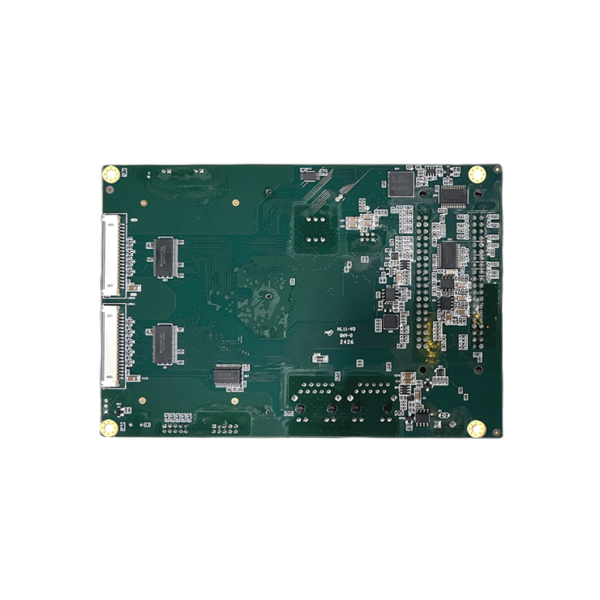

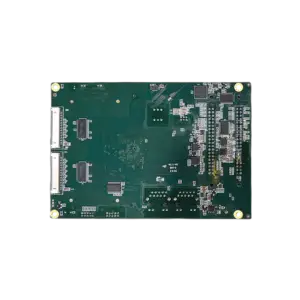

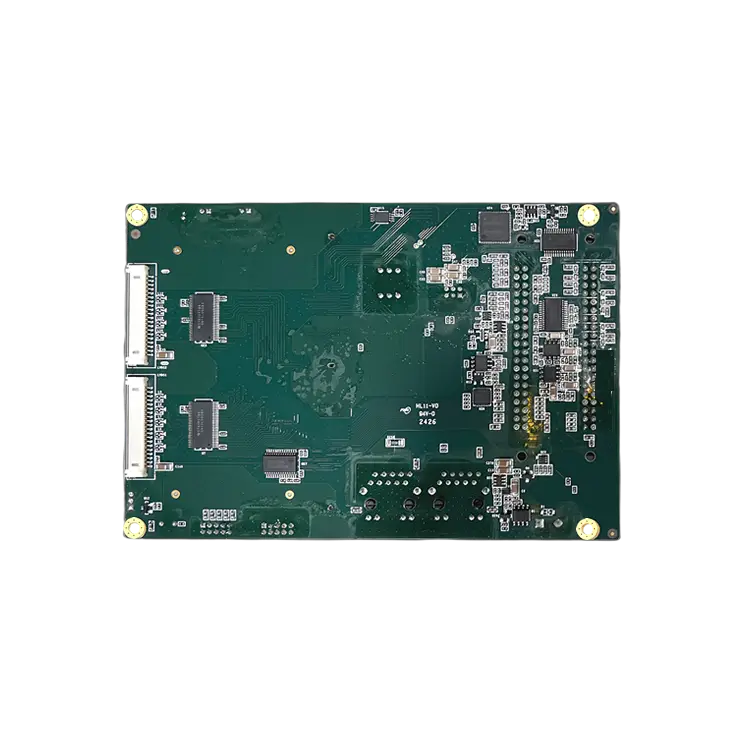

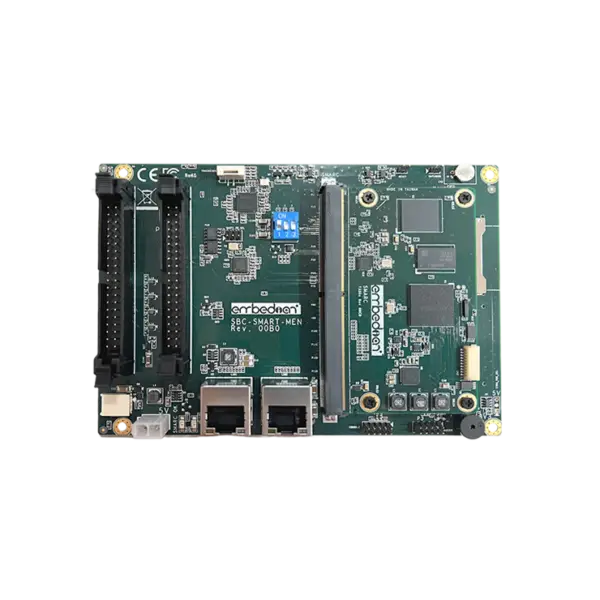

SMART-MEN TI 3.5-inch SBC
- TI Sitara AM3354 Cortex-A8 @600MHz/800MHz/1GHz
- 3.5-inch SBC (102mm x 145mm, L x W) Form Factor
- Availability guaranteed until 2035
Feature Highlights
- 512MB DDR3L, 8GB eMMC
- 18-bit or 24-bit dual-channel LVDS (up to 1366x768p60)
- 2x 10/100Mbps Ethernet, and SDIO
- 40P 2.54mm Expansion Connector P1 for 5 x RS232s, 3 x USB 2.0 Host, 1 x USB to UART Bridge and I2C
- 40P 2.54mm Expansion Connector P2 for 1 x RS422/485, Audio, CAN, I2C, SPI, USB 2.0 OTG and GPIO
Yocto Project and Linux
- Full Board Support Package and ready-to-run images
- Linux kernel, Yocto Project BSP and U-Boot
- Ubuntu
- Continuous BSP updates and maintenance
Speed Up your Product Design
- Ready to use single board computers
Specifications
Technical Information
Form Factor
3.5-inch SBC
Dimension (W x L x H)
145mm x 102mm x 27mm
CPU
- TI Sitara AM3354 ARM Cortex-A8 @600MHz/800MHz/1.0GHz
GPU
- SGX530 (3D and 2D)
- Supports OpenGL ES 2.0 and Open CL 1.1
- Supports upto 1366x768p60 resolutions
Main Memory
- 16-bit 512MB DDR3L
- 8GB eMMC (5.x) onboard
- AT24C32 EEPROM onboard
Display
- Single channel 18/24-bit color depth LVDS interfaces (up to 1366x768p60)
LVDS Backlight
- LVDS Backlight Driver Onboard
2 x Ethernet (RJ45)
- 2 x 10/100 Mbps RJ45 Ethernet Jack
- PHY: Microchip LAN8720A PHY on board
SDHC/SDIO Connector
One SD Connector
- Support 1 x 4-bit SDHC/SDIO Connector
2.54mm 40P Expansion Connector P1
- 5 x RS232s (via CP2108 USB to quad UARTs bridge, RS232 Transceivers on board))
- 3 x USB 2.0 Host
- Serial to USB Bridge (UART0-CP2102-USB) (
- I2C
2.54mm 40P Expansion Connector P2
- 1 x RS422/485
- 1 x USB 2.0 OTG
- AUDIO (Audio Codec TLV320AIC3106 onboard) (
- CAN (Transceiver on board)
- 10 x GPIOs
Additional Interfaces
- 1 x SPI
- RTC (Seiko S35390-A) backup battery onboard
- 1 x Buzzer
- 1 x 4-wire resistive touch connector
Other Features
- Reset Jumper
- Watchdog Jumper (Reset Power Source)
Power
- 5V DC-IN by 2-pin 5mm Terminal Block
- Power Consumption: 2.7 W (Typical)
Boot Source Select
Boot from one of the following interfaces:
- eMMC Flash (Default)
- SD Card (Recovery)
Environment
Environment
- Operational Temperature: 0oC ~ 60oC (Commercial, 600MHz and 1GHz CPU only)/-40oC ~ 85oC (Industrial, 800MHz CPU only)
- Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Mechanical
- Dimensions: 145mm x 102mm x 27mm
- Weight: 0.15Kg
Certifications
Certifications
Certifications: CE/ FCC Class B
Design Resources
Software Guides
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6
Ordering Information
1
- 600: AM3354 processor running at 600MHz (commercial temp. only)
- 800: AM3354 processor running at 800MHz (industrial temp. only)
- 01G: AM3354 processor running at 1GHz (commercial temp. only)
2
- I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
Example
- Part Number: SMART-MEN-600
Description: SMART-MEN 3.5-inch SBC running at 600MHz and Commercial Temperature (0oC ~ 60oC)
- Part Number: SMART-MEN-800-I
Description: SMART-MEN 3.5-inch SBC running at 800MHz and Industrial Temperature (-40oC ~ 85oC)
Packing List
- 1 x SMART-MEN
Optional Accessaries
10P header to DB9 (for console)
- P/N: 12505200BTD-00
Description: 2x5 10-way box header to DB9, 200mm.
7-inch LVDS display
- P/N: 125040702LCD-00
Description: PVI 7-inch LVDS Display PM070WL3(LF), 3.3V power supply and 10V LED backlight
7-inch 18-bit LVDS Cable
- P/N: 125023002LVD-00
Description: LVDS Connector to 7-inch LVDS Display PM070WL3(LF) LVDS connector cable, 300mm
