SMART-BEE

$170

  • TI Sitara AM3354 Cortex-A8 @600MHz/800MHz/1GHz
  • 512MB DDR3L, 8GB eMMC
  • LVDS, 2x 10/100Mbps Ethernet
  • 1x CAN, 3x RS232s, 1x USB 2.0 OTG, 1x USB 2.0 Host
  • SDIO, 2x I2C, 2x SPIs, Audio and GPIOs



or
Add to Wishlist
SKU: SMART-BEE-600 Category: Tag:

Share:

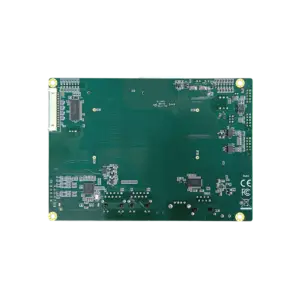

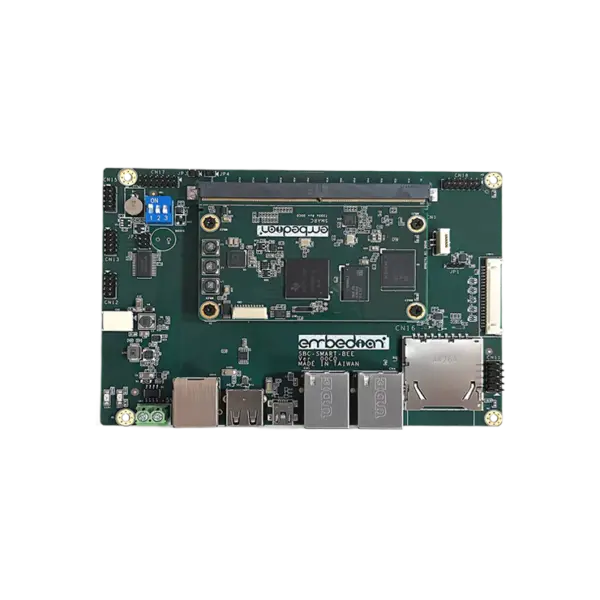

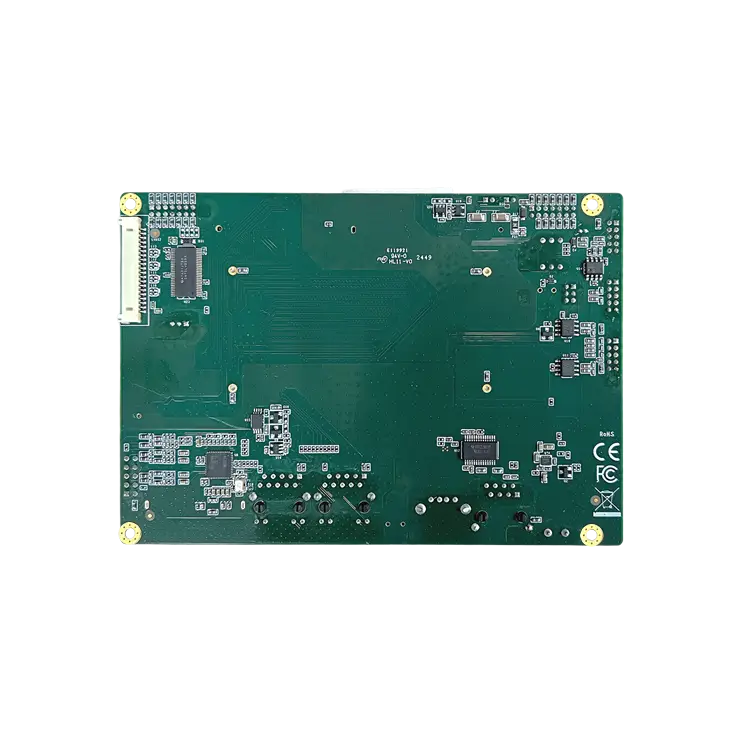

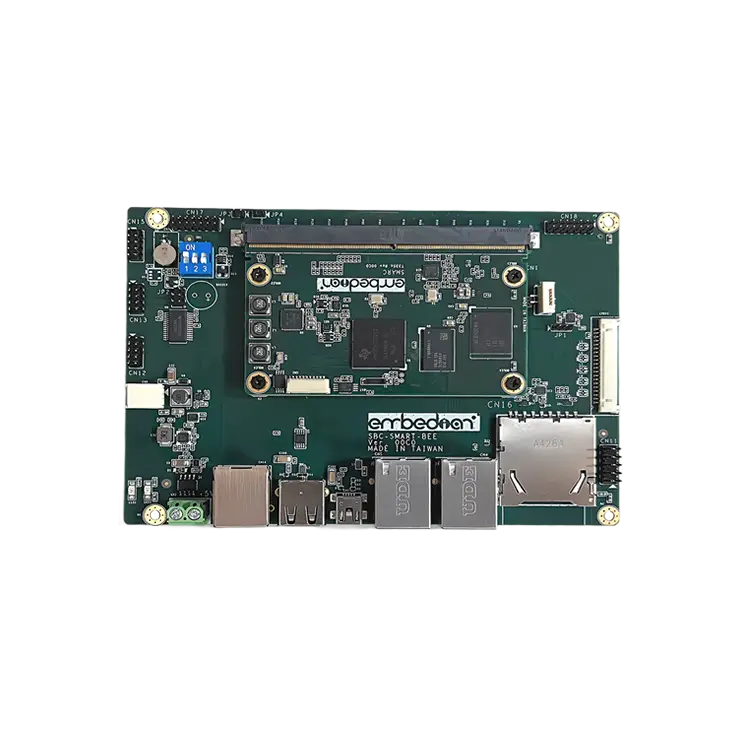

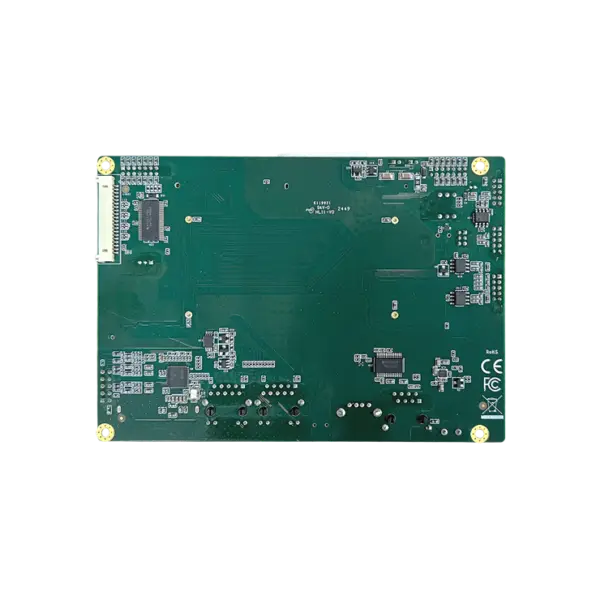

SMART-BEE TI 3.5-inch SBC

  • TI Sitara AM3354 Cortex-A8 @600MHz/800MHz/1GHz
  • 3.5-inch SBC (102mm x 145mm, L x W) Form Factor
  • Availability guaranteed until 2035
Feature Highlights
SMARC logo
  • 512MB DDR3L, 8GB eMMC
  • 18-bit or 24-bit dual-channel LVDS (up to 1366x768p60)
  • 2x 10/100Mbps Ethernet, SDIO and AUDIO
  • 1x CAN, 3x RS232s, 2x I2C, 2x SPIs, 12 GPIOs, 1x USB2.0 OTG and 1x USB 2.0 Host
Yocto Project and Linux
SMARC logo
  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project BSP and U-Boot
  • Ubuntu
  • Continuous BSP updates and maintenance
Speed Up your Product Design
  • Ready to use single board computers

hardware document Specifications

Technical Information
Form Factor
3.5-inch SBC
Dimension (W x L x H)
145mm x 102mm x 15mm
CPU
  • TI Sitara AM3354 ARM Cortex-A8 @600MHz/800MHz/1.0GHz
GPU
  • SGX530 (3D and 2D)
  • Supports OpenGL ES 2.0 and Open CL 1.1
  • Supports upto 1366x768p60 resolutions
Main Memory
  • 16-bit 512MB DDR3L
  • 8GB eMMC (5.x) onboard
  • AT24C32 EEPROM onboard
Display
  • Single channel 18/24-bit color depth LVDS interfaces (up to 1366x768p60)
LVDS Backlight
  • LVDS Backlight Driver on board
2 x Ethernet (RJ45)
  • 2 x 10/100 Mbps RJ45 Ethernet Jack
  • PHY: Microchip LAN8720A PHY on board
USB
  • One USB OTG 2.0 Connector (Mini Type-B)
  • One USB 2.0 Host Ports (Type A)
SDHC/SDIO Connector
One SD Connector
  • Support 1 x 4-bit SDHC/SDIO Connector
Audio
  • Audio Codec: TLV320AIC3106 Codec Chip
  • Microphone Input and Headphone Output 2.54mm Header
Additional Interfaces
  • 3 x RS232s (Transceiver onboard, and one can be configured as RS422/485)
  • 1 x CAN Bus Header (Tranceiver on Board)
  • RTC (Seiko S35390-A) backup battery onboard
  • 2 x I2Cs
  • 2 x SPIs
  • 1 x Buzzer
  • 12 x GPIOs Header
  • 1 x 4-wire resistive touch connector
Other Features
  • Reset Jumper
  • Watchdog Jumper (Reset Power Source)
Power
  • 5V DC-IN by 2-pin 5mm Terminal Block
  • Power Consumption: 2.5 W (Typical)
Boot Source Select
Boot from one of the following interfaces:
  • eMMC Flash (Default)
  • SD Card (Recovery)
Environment
Environment
  • Operational Temperature: 0oC ~ 60oC (Commercial, 600MHz and 1GHz CPU only)/-40oC ~ 85oC (Industrial, 800MHz CPU only)
  • Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Mechanical
  • Dimensions: 145mm x 102mm x 15mm
  • Weight: 0.15Kg
Certifications
Certifications
Certifications: CE/ FCC Class B

hardware document Design Resources



hardware document Software Guides

Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6

hardware document Ordering Information

Part Number
1
  • 600: AM3354 processor running at 600MHz (commercial temp. only)
  • 800: AM3354 processor running at 800MHz (industrial temp. only)
  • 01G: AM3354 processor running at 1GHz (commercial temp. only)
2
  • I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
Example
  • Part Number: SMART-BEE-600

Description: SMART-BEE 3.5-inch SBC running at 600MHz and Commercial Temperature (0oC ~ 60oC)

  • Part Number: SMART-BEE-800-I

Description: SMART-BEE 3.5-inch SBC running at 800MHz and Industrial Temperature (-40oC ~ 85oC)

Packing List
  • 1 x SMART-BEE
Optional Accessaries
Console Cable
  • P/N: 125051000DBG-00

Description: Console debug cable. RJ45 (CN14) to DB9, 1000mm Black.

10P header to DB9
  • P/N: 12505200BTD-00

Description: 2x5 10-way box header to DB9, 200mm.

7-inch LVDS display
  • P/N: 125040702LCD-00

Description: PVI 7-inch LVDS Display PM070WL3(LF), 3.3V power supply and 10V LED backlight

7-inch 18-bit LVDS Cable
  • P/N: 125023002LVD-00

Description: LVDS Connector to 7-inch LVDS Display PM070WL3(LF) LVDS connector cable, 300mm
