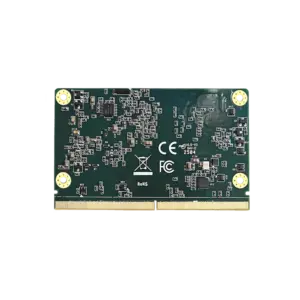

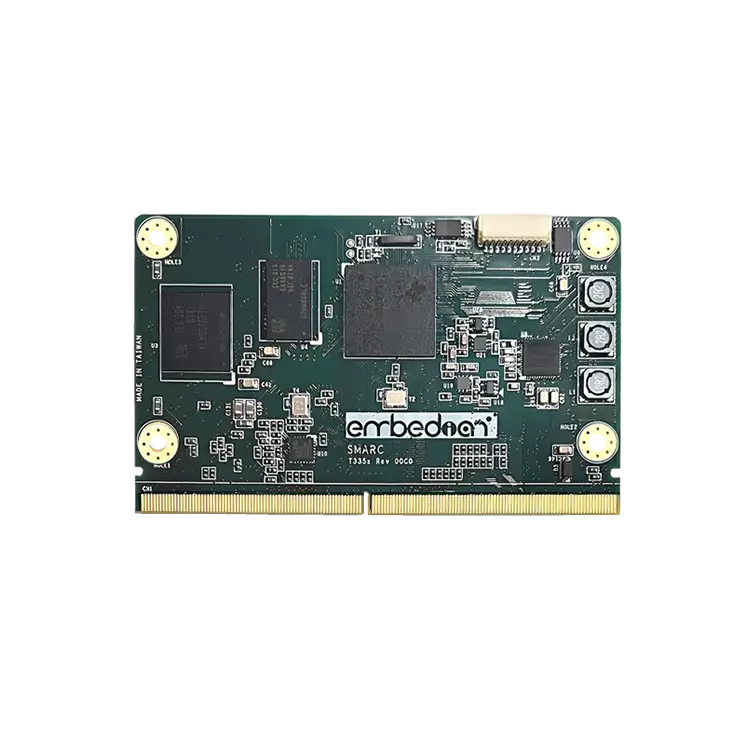

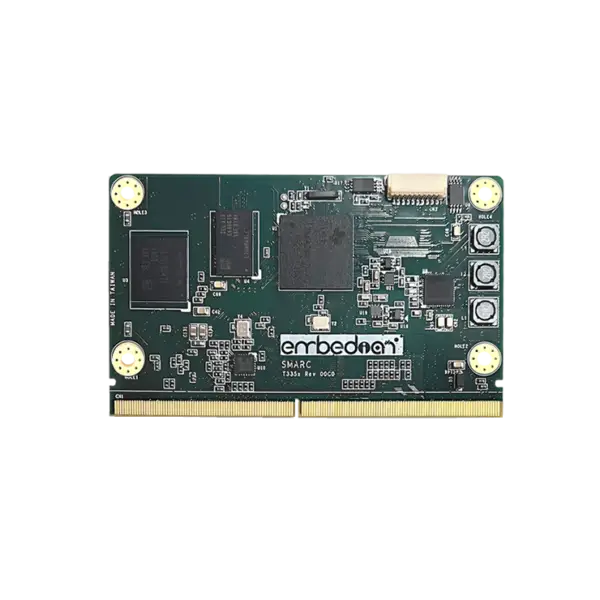

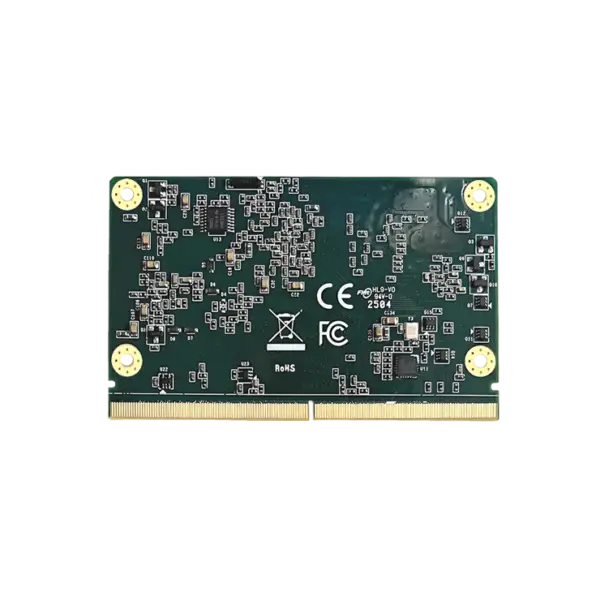

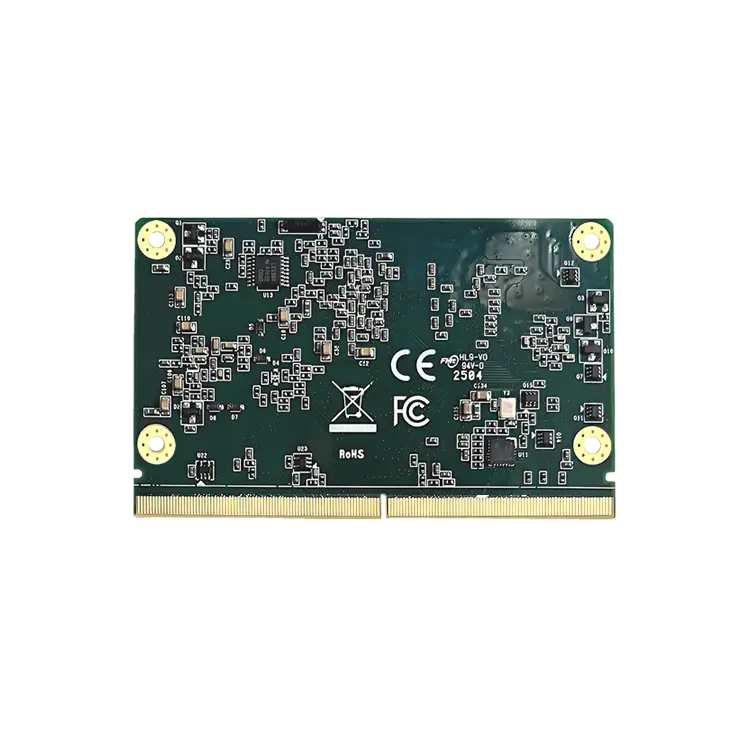

SMARC-T3354 TI Sitara AM3354 SMARC 1.0 System-on-Module
- ARM Cortex-A8, 1.0GHz/800MHz/600MHz
- SMARC 1.0 (82mm x 50mm) Compliance
- Availability guaranteed until 2035
Feature Highlights
- 512MB DDR3L and 8GB eMMC
- 24-bit LVDS (1366x768p60)
- SGX530 2D/3D GPU
- 2 x 10/100Mbps Ethernets, 1 x USB 2.0 OTG, 1 x USB 2.0 Host, 1 x CAN, 3 x UARTs, 3 x I2C, 1 x I2S, 2 x SPI, 1 x SDIO, 12 x GPIOs
- Industrial temperature range of -40oC to 85oC
Yocto Project, Linux and RTOS
- Full Board Support Package and ready-to-run images
- Linux kernel, Yocto Project BSP and U-Boot
- Ubuntu
- Continuous BSP updates and maintenance
Speed Up your Product Design
- Full carrier-board design package - schematics, BOM, PCB layout and 3D step files
- Direct technical support by Embedian design engineers
- Free design review by Embedian engineers
- Carrier board debug by Embedian design engineers
- Driver adaptation service for custom LCD panels
Specifications
Technical Information
Compliance
SMARC 1.0 Compliant
Dimension (W x L)
82mm x 50mm
CPU
- TI Sitara AM3354 Cortex-A8 @1.0GHz/800MHz/600MHz)
GPU
- SGX530 2D and 3D
- Up to 1366x768p60 resolutions
Main Memory
- 512MB DDR3L
- 8GB eMMC (5.x) onboard
- AT24C32 EEPROM onboard
Display
- 24 bit single-channel LVDS (up to 1366x768@60Hz)
SDIO
One SDIO interface
- 1 x 4-bit SDIO card interface with support lines
SPI
Two SPI interfaces with 2 chip selects on each SPI channel
I2S
One I2S interfaces
- Typically used for connection to I2S audio CODECs
I2C
Three I2C interfaces
- Power Management
- General Purpose
- LCD Display ID
UART
- Three asynchronous serial ports
- One with 4 wire handshake (RXD, TXD, RTS#, CTS#)
- Two with data only (RXD, TXD)
CAN Bus
One CAN 2.0b interfaces
- Logic level signals from Module based FlexCAN bus protocol controllers
- RXD and TXD only
USB
- One USB OTG 2.0 Port with PHY
- One USB 2.0 Host Port with PHY
10/100Mbps Ethernet
- Two 10/100Mbps MDI interface
- Microchip LAN8720A PHY on module
- No magnetics on Module
- LED support signals
Real-Time Clock (RTC)
External Seiko S35390A controller on module
General Purpose I/O
12 x GPIO Signals, specific alternate functions are assigned to some GPIOs
- PWM / Tachometer capability
- Camera support
- CAN Error Signaling
- HD Audio reset
System and Power Management Signals
- Reset Out and Reset In
- Power Button Input
- Power Source Sataus
- Module Power State Status
- System Management Pins
- Battery and Battery Charger Management Pins
- Carrier Power On Control Pins
Power Consumption
- 2.0W (Typical)
Boot Source Select
Three pins to allow selection from carrier board
Select options include to boot from one of the following:
- Module NOR Flash (Default)
- Module eMMC Flash
- Network Boot
- Carrier SD Card (Recovery)
Power Supply
3V to 5.25V
Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply
- 3.3V VDDIO
Temperature
Industrial Temperature
- Operating Temperature Range: -40o C ~ 85o C
- Storage Temperature Range: -40o C ~ 150o C
- Junction Temperature Range: -40o C ~ 150o C
Form Factor
SMARC 1.0
82 mm x 50 mm by SMARC 1.0 Specification
Design Resources
Software Guides
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6
Evaluation Kit
SMARC 1.0 Evaluation Baseboard
- SMARC v1.0 module compliance
- SMARC v1.0 module bring-up platform for hardware and software development
- SMARC 1.0 module evaluation and validation platform
- Customer carrier board design reference
- Priority technical support from Embedian
Ordering Information
- Part Number: EVK-SBC-SMART-BEE
Packing Lists
- 1 x EVK-SMART-BEE carrier board
- 4 x M2.5 screws
- 1 x 16GB SDHC card with image pre-installed (only when purchase together with Embedian SMARC modules)
- 1 x RJ45-DB9 console debug cable
- 1 x LVDS LCD Backlight cable
- 1 x 5V/3A Power Supply
- 4 x M2.5 screws
- 1 x 10-way box header to DB9 cable (for RS232)
- SMARC module not included
Evaluation Bseboard Features
- DC +5V Power input with 2-way 5.00mm terminal block
- Accept 3.3V VDDIO SMARC 1.0 compliant module
- Supports all SMARC 1.0 I/O interfaces
- Form factor: 102mm (L) x 145mm (W) (3.5-inch form factor)
Ordering Information
1
- 600: AM3354 processor running at 600MHz (commercial temp. only)
- 800: AM3354 processor running at 800MHz (industrial temp. only)
- 01G: AM3354 processor running at 1GHz (commercial temp. only)
2
- I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
3
- C: Conformal Coating (Only support it for industrial temperature variants and at the mass production stage); Leave it blank if not needed.
Example
- Part Number: SMARC-T3354-600
Description: Cortex-A8 Sitara AM3354 processor SMARC 1.0 module running at 600MHz and commercial Temperature (0oC ~ 60oC)
- Part Number: SMARC-T3354-800-I
Description: Cortex-A8 Sitara AM3354 processor SMARC 1.0 module running at 800MHz and Industrial Temperature (-40oC ~ 85oC)
