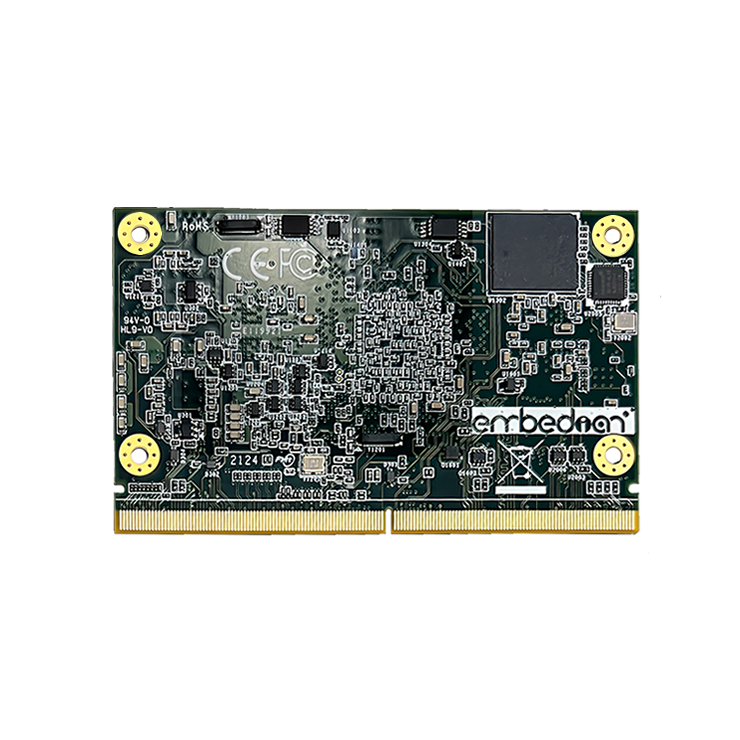

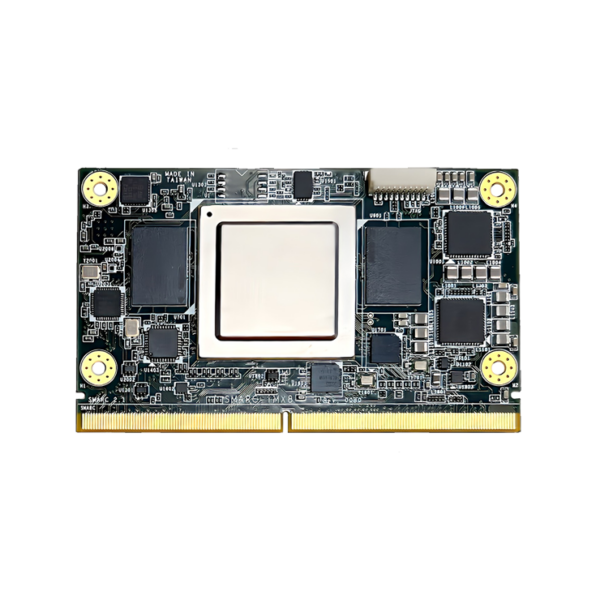

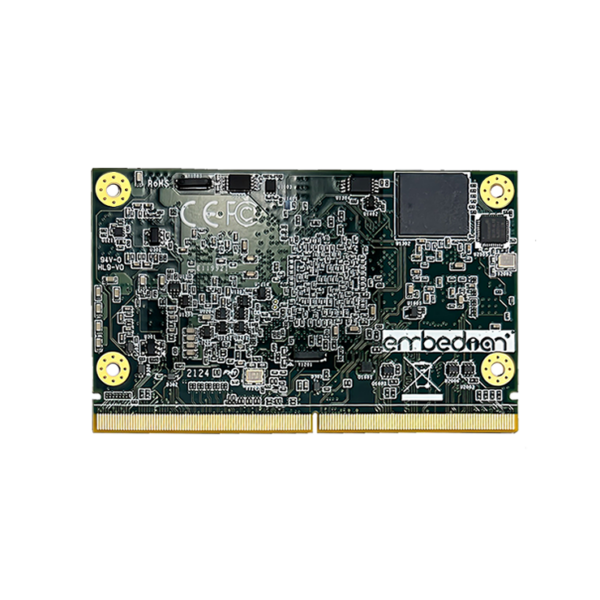

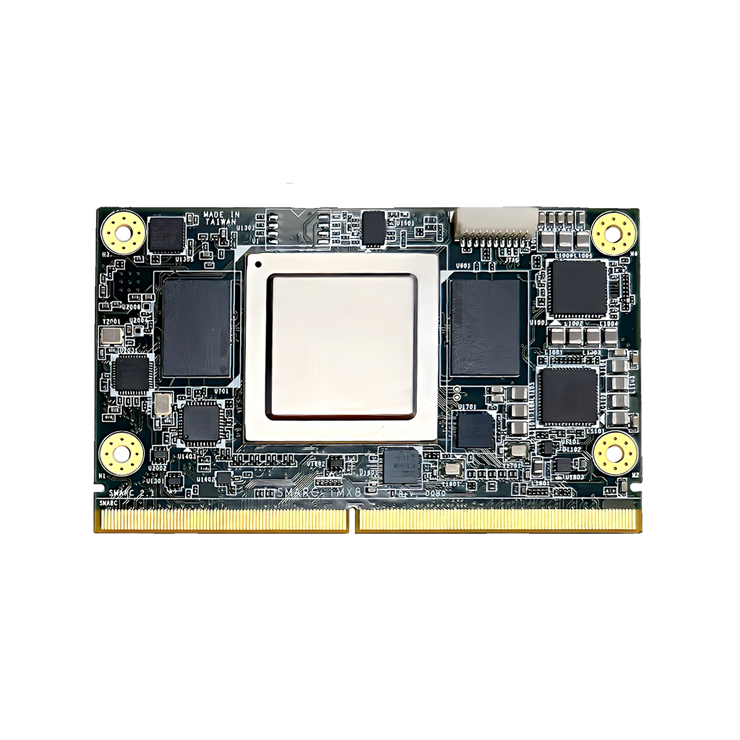

SMARC-iMX8 NXP SMARC 2.0 System-on-Module
- Dual-core ARM Cortex-A72 CPU, 1.6GHz and Quad-core ARM Cortex-A53, 1.2GHz
- Real-time 2x ARM Cortex-M4F co-processor
- SMARC 2.0 (82mm x 50mm) Compliance
- Availability guaranteed until 2038
Feature Highlights
- 4GB or 8GB LPDDR4 and 32GB eMMC
- HDMI, 24-bit dual-channel LVDS, eDP and 2 x MIPI-CSI (2-LANE and 4-LANE)
- GPU (OpenGL ES 3.2, OpenVX 1.01, Open CL 2.0, OpenVG 1.1)
- VPU (4k h.265 decode; 1080p h.264 encode)
- 2 x GbE w/AVB, 1 x USB 3.0, 1 x USB OTG, 4 x USB 2.0, 2 x CAN-FD, 4 x UARTs, 6 x I2C, 2 x I2S, 2 x PCIe 3.0 (1-LANE), 1 x SATA 3.0, 2 x SPI, TPM, 1 x SDIO, 12 x GPIOs
- Wide temperature range of -40oC to 85oC
Yocto Project, Linux and RTOS
- Full Board Support Package and ready-to-run images
- Linux kernel, Yocto Project BSP and U-Boot
- Continuous BSP updates and maintenance
Speed Up your Product Design
- Full carrier-board design package - schematics, BOM, PCB layout and 3D step files
- Direct technical support by Embedian design engineers
- Free design review by Embedian engineers
- Carrier board debug by Embedian design engineers
- Driver adaptation service for custom LCD panels
Specifications
Technical Information
Compliance
SMARC 2.0 Compliant
Dimension (W x L)
82mm x 50mm
CPU
- NXP i.MX8 2 x 1.6GHz Cortex-A72 Core and 4 x 1.2GHz Cortex-A53
- Real-time 2 x ARM Cortex-M4F
GPU
- 2 x Vivante GC7000XSVX high performance GPU
- Supports OpenGL ES 3.2, OpenVX 1.01, OpenCL 2.0 and OpenVG 1.1
VPU
- 4k h.265 Decode, 1080p h.264 encode
Main Memory
- 32-bit 4GB/8GB LPDDR4 up to 3200MT/s
- 32GB eMMC (5.x) onboard
- AT24C32 EEPROM onboard
Display
- HDMI 2.0a with HDCP 2.2 and DP 1.3
- Dual Channel LVDS display (up to 1920x1080@60Hz)
- eDP 1.4 (from MIPI-DSI)
TPM
Support TPM 2.0
MIPI-CSI Camera Interface
1 x 2-lane and 1 x 4-lane MIPI-CSI
SDIO
One SDIO interface
- 1 x 4-bit SDIO card interface with support lines
SPI
Two SPI interfaces with 2 chip selects on each SPI channel
I2S
Two I2S interfaces
- Typically used for connection to I2S audio CODECs
SATA
One SATA interface
- SATA Gen 3.0
I2C
Six I2C interfaces
- Power Management
- General Purpose
- Camera 0
- Cemera 1
- LCD Display ID
- HDMI
UART
- Four asynchronous serial ports
- Two with 4 wire handshake (RXD, TXD, RTS#, CTS#)
- Two with data only (RXD, TXD)
FlexCAN Bus
Two CAN-FD v3.0 interfaces
- Logic level signals from Module based FlexCAN bus protocol controllers
- RXD and TXD only
USB
- One USB OTG 2.0 Port with PHY
- Four USB 2.0 Host with PHY
- One USB 3.0 Host with PHY
PCIe
- Two PCIe 3.0 1-Lane (Only one instance for QuadPlus core)
- PCIe Gen 3.0
- Common PCIe wake signal
Gigabit Ethernet
- Two GbE MDI interfaces
- Qualcomm AR8035 on module
- No magnetics on Module
- LED support signals
Real-Time Clock (RTC)
External Seiko S35390A controller on module
General Purpose I/O
12 x GPIO Signals, specific alternate functions are assigned to some GPIOs
- PWM / Tachometer capability
- Camera support
- CAN Error Signaling
- HD Audio reset
System and Power Management Signals
- Reset Out and Reset In
- Power Button Input
- Power Source Sataus
- Module Power State Status
- System Management Pins
- Battery and Battery Charger Management Pins
- Carrier Power On Control Pins
Power Consumption (Typical)
- 3.5W
Heat Sink
VTT-HS-8J066B1
- Note: i.MX8 need heat sink
Boot Source Select
Three pins to allow selection from carrier board
Select options include to boot from one of the following:
- Module eMMC Flash (Default)
- Network Boot
- Carrier SD Card (Recovery)
Power Supply
3V to 5.25V
Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply
- 1.8V VDDIO
Temperature
Industrial Temperature
- Operating Temperature Range: -45o C ~ 85o C
- Storage Temperature Range: -40o C ~ 150o C
- Junction Temperature Range: -40o C ~ 150o C
Form Factor
SMARC 2.0
82 mm x 50 mm by SMARC 2.0 Specification
Design Resources
Software Guides
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6
Evaluation Kit
SMARC 2.1 Evaluation Baseboard
- SMARC v2.0 module compliance
- SMARC v2.0 module bring-up platform for hardware and software development
- SMARC 2.0 module evaluation and validation platform
- Customer carrier board design reference
- Priority technical support from Embedian
Ordering Information
- Part Number: EVK-STD-CARRIER-S20
Packing Lists
- 1 x EVK-STD-CARRIER-S20 carrier board
- 4 x M2.5 screws
- 1 x 16GB SDHC card with image pre-installed (only when purchase together with Embedian SMARC modules)
- 1 x LVDS cable
- 1 x LVDS LCD Backlight cable
- 1 x 12V/3.5A Power Supply
- 1 x SATA Power cable
- 1 x 10-way box header to DB9 cable (for console or RS232)
- SMARC module not included)
Evaluation Bseboard Features
- DC +12V ~ +24V Power input with 2.5mm DC Jack
- Accept 1.8V VDDIO SMARC 2.0+ compliant module
- Supports all SMARC 2.0+ I/O interfaces
- Form factor: 170mm (L) x 170mm (W) (mini-ITX form factor)
Ordering Information
1
- 6: DSP in CPU
- 5: No DSP in CPU
2
- QM: CPU is QuadMax Core, 2 x Cortex-A72 + 4 x Cortex-A53
- QP: CPU is QuadPlus Core, 1 x Cortex-A72 + 4 x Cortex-A53
3
- 8G: 8GB LPDDR4 memory
- 4G: 4GB LPDDR4 memory
4
- I: Industrial Temperature (-40oC ~ 85oC); Only industrial temperature option for this part.
5
- C: Conforrmal Coating (Only support it for industrial temperature variants and at the mass production stage); Leave it blank if not needed.
Example
- Part Number: SMARC-iMX8-5-QM-8G-I
Description: QuadMax core i.MX8 processor without DSP SMARC 2.0 module with 8GB LPDDR4, Industrial Temperature (-40oC ~ 85oC)
- Part Number: SMARC-iMX8-5-QP-4G-I
Description: QuadPlus core i.MX8 processor without DSP SMARC 2.0 module with 4GB LPDDR4, Industrial Temperature (-40oC ~ 85oC)
Optional Accessaries
Heat Sink
- P/N: VTT-HS-8J066B1
Description: Heak sink for SMARC-iMX8MP
