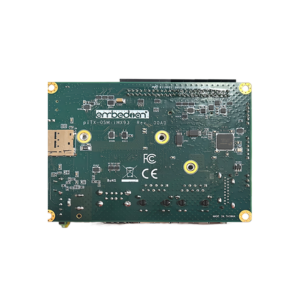

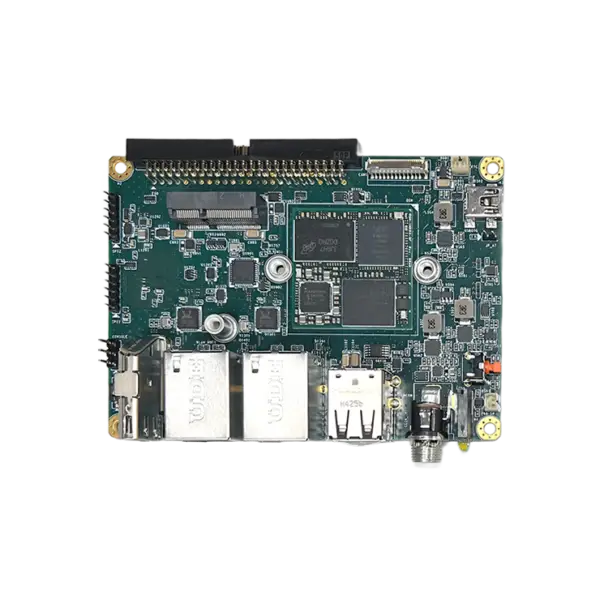

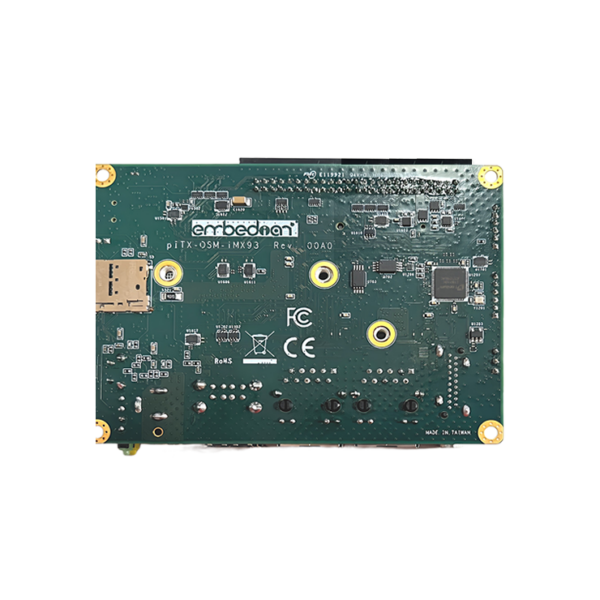

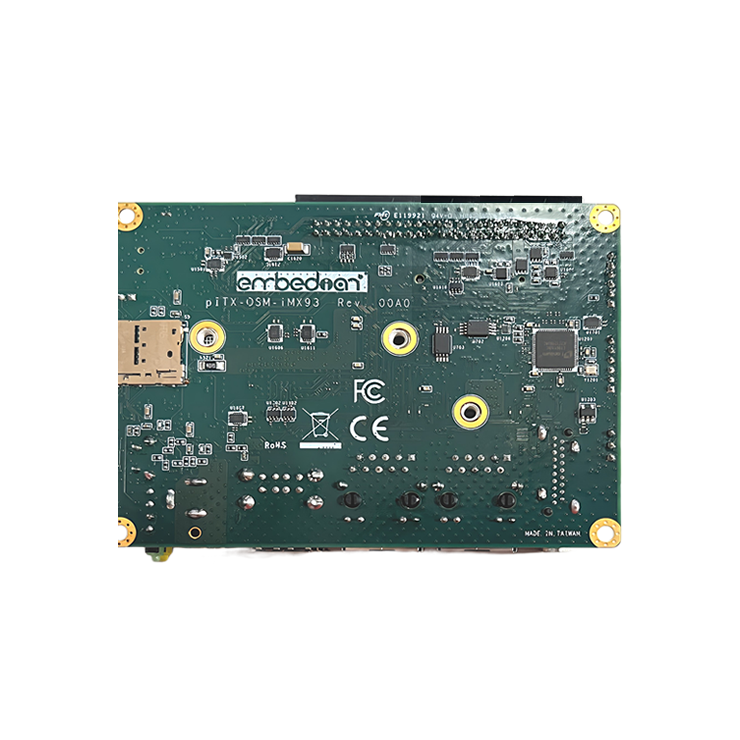

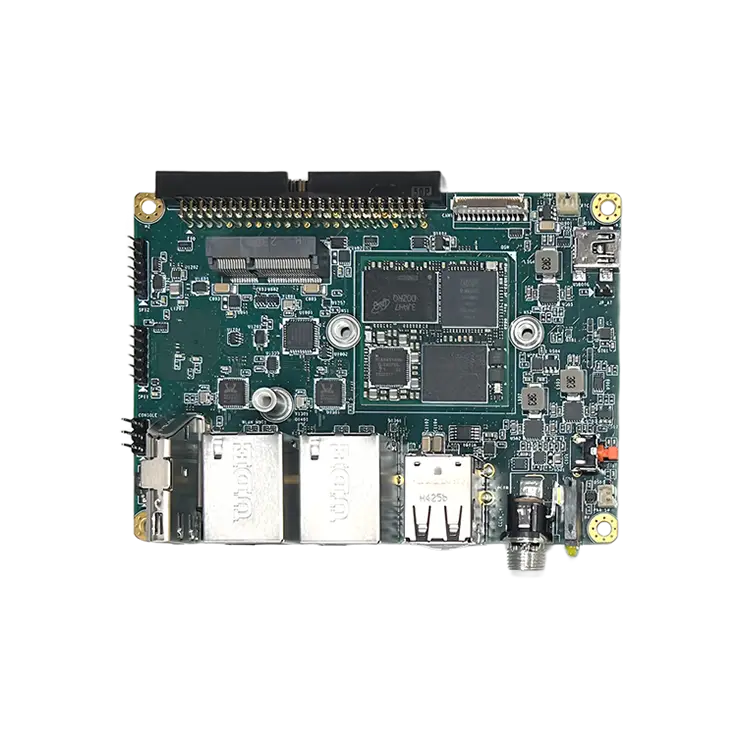

pITX-OSM-iMX93 NXP pico-ITX SBC
- Dual-core ARM Cortex-A55 CPU, 1.7GHz
- Integrated AI/ML Neural Processing Unit
- Real-time ARM Cortex-M33 co-processor
- pico-ITX (100mm x 72mm) Form Factor and passive cooling solution
- Availability guaranteed until 2038
Feature Highlights
- 1GB or 2GB LPDDR4 and 16GB eMMC
- HDMI (from MIPI-DSI to HDMI bridge)
- 2 x GbE LANs, 1 x USB 2.0 OTG, 2 x USB 2.0, 1 x M.2 (SDIO/UART/USB 2.0), 2 x SPI
- 2mm 50P I/O expansion box headers (2 x CAN-FD, 3 x UARTs, 2 x USB 2.0, 2 x I2C, 1 x SPIs, 6 x GPIOs)
- Wide temperature range of -40oC to 85oC
Yocto Project, Linux and RTOS
- Full Board Support Package and ready-to-run images
- Linux kernel, Yocto Project BSP and U-Boot
- Continuous BSP updates and maintenance
Speed Up your Product Design
- Ready to use single board computers
- The 50-pin expansion connector enhances the diversity and flexibility of the product.
- Reference Schematic for 50-pin I/O board
Specifications
Technical Information
Form Factor
pico-ITX
Dimension (W x L X H)
100mm x 72mm x 18mm
CPU
- NXP i.MX9352 2 x 1.7GHz Cortex-A55 Core
- Real-time 250Mhz ARM Cortex-M33
- ARM Ethos-U65 microNPU (ML) 0.5 TOPs
- PxP 2D GPU
Main Memory
- 16-bit 1GB/2GB LPDDR4x up to 3200MT/s
- 16GB eMMC (5.x) onboard
- M24C32 EEPROM onboard
Display
- HDMI (up to 1920x1080p60) Connector
- implement via LT9611UXC MIPI-DSI to HDMI bdrige
2 x Ethernet (RJ45)
- Chipset: NXP i.MX93 integrated RGMII
- One supports QoS with TSN
- Speed: 10/100/1000 Mbps
- PHY: Realtek RTL8211FD(I)-CG
RTC
- Backup Battery by 2-pin type connector
Reset
- 1 Reset Button
USB
- One USB OTG 2.0 Connector (Mini Type B)
- Two USB 2.0 Host Connector (Type A)
- One USB 2.0 Host signals on M.2 2230 Key E Connector
- One USB 2.0 Host signals on EIO 50-pin 2.0mm expansion box header
MIPI-CSI Camera Interface
- 1 x 2-lane MIPI-CSI
- 0.5mm 24P FPC(V) Connector on the rear side
M.2 Type 2230 Key E Connector
One M.2 Type 2230 Key E Connector
- Support 1 x 4-bit SDIO
- Support 1 x USB 2.0 signals
- Support 1 x 4-wire UARTs
- Support iW612 chipset WiFi/Bluetooth M.2 cards (like u-blox M2-MAYA-W271-00C)
microSD Connector
One microSD Connector
- Support 1 x 4-bit microSD Connector
LED
- 1 x Green Power LED
- 1 x Yellow Programmable LED
SPI
Two SPI interfaces with 2 chip selects on each SPI channel
- One SPI goes to EIO 50-pin 2.0mm expansion box header
- One SPI goes to 1x6P 2.00mm headers
UARTs
Five UARTS
- 1 x 2-wire on debug header
- 1 x 4-wire on M.2 Connector
- 1 x 4-wire and 2 x 2-wire on EIO 50-pin 2.0mm expansion box header
Rear I/O Expansion Header
EIO50 50-pin 2.00mm Box Header that includes
- 2 x USB 2.0 Host
- 2 x CAN-FD
- 1 x SPI
- 2 x I2C
- 3 x UARTs
- 6 x GPIOs
Real-Time Clock (RTC)
External Micro Crystal RV-8263-C8 RTC controller on module
Expansions
- 1 x M.2 2230 Key E Slot (USB 2.0/UART/SDIO)
- EIO50 50-pin 2.00mm Box Header (3 x UARTs, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)
- SD Socket: 1 x Micro SD Socket
Power
- Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)
- AT or ATX mode
- Power Consumption: 3.5 W
Boot Source Select
Select options include to boot from one of the following:
- eMMC Flash (Default)
- microSD Card (Recovery)
Environment
Environment
- Operational Temperature: 0oC ~ 60oC (Commercial)/-40oC ~ 85oC (Industrial)
- Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Mechanical
- Dimensions: 100 x 72 x 18 mm
- Weight: 0.05Kg
Certifications
Certifications
Certifications: CE/ FCC Class B
Design Resources
Software Guides
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6
Ordering Information
1
- 1G: 1GB LPDDR4x
- 2G: 2GB LPDDR4
2
- I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
Example
- Part Number: pITX-OSM-iMX93-1G-I
Description: pITX-OSM-iMX93 pico-ITX SBC with 1GB LPDDR4x and Industrial Temperature (-40oC ~ 85oC)
- Part Number: pITX-OSM-iMX93-2G
Description: pITX-OSM-iMX93 pico-ITX SBC with 2GB LPDDR4x and commercial temperature.)
Packing List
- 1 x pITX-OSM-iMX93
- 1 x RTC battery and cable
Optional Accessaries
Heat Sink
- P/N: TDB
Description: Heak sink for pITX-OSM-iMX93
50P I/O Expansion Board
- P/N: pITX-IOB-2201
Features:
1 x USB 3.0+2.0 dual-stack Type A connector
1 x USB 2.0 Type A Connector
1 x SPI Header
3 x RS232, 1 x RS485
2 x CAN-FD
6 x GPIO (-24V-24V)
2 x 2-pin I2C 2.0mm Header
Capacitity Touch RST and INT Header
Dimension: 146mm x 31mm
