pITX-MX8M-PLUS

$220

  • NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz
  • 2GB/4GB/6GB LPDDR4, 16GB eMMC
  • AI/ML Neural Processing Unit
  • HDMI, LVDS, MIPI-DSI, 2 x USB 3.0, 1 x USB 2.0 OTG, 2x GBEs LANs, M.2 and mPCIe
  • 2.0mm 50P expansion header (1 x USB 3.1 Host, 3 x USB 2.0 Host, 2 x CAN-FD, 1 x SPI, 2 x I2C, 4 x UARTs and 6 x GPIOs)



or
Add to Wishlist
SKU: pITX-MX8M-PLUS Category: Tag:

Share:

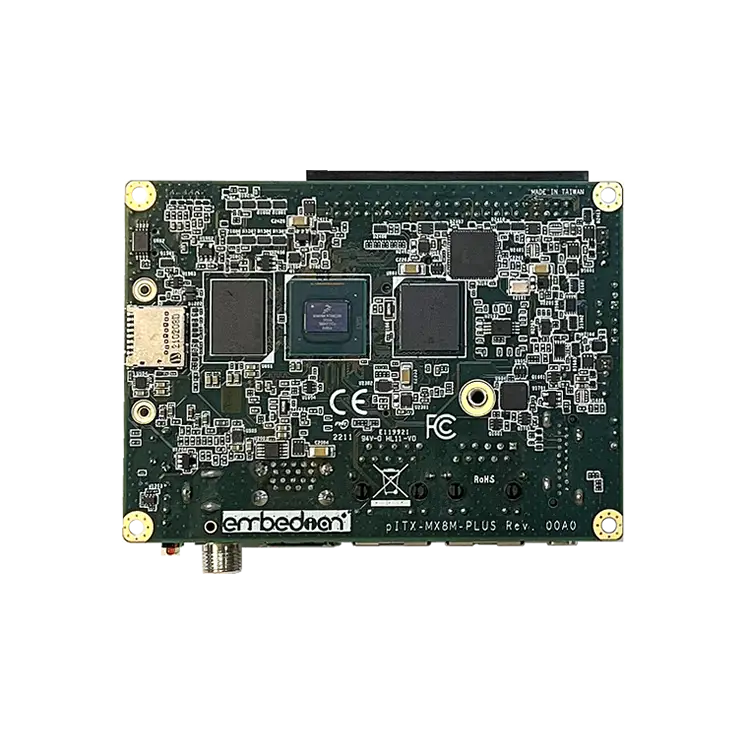

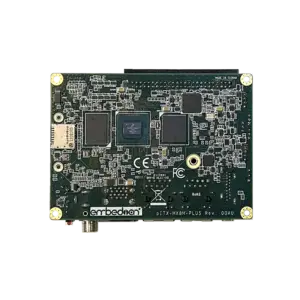

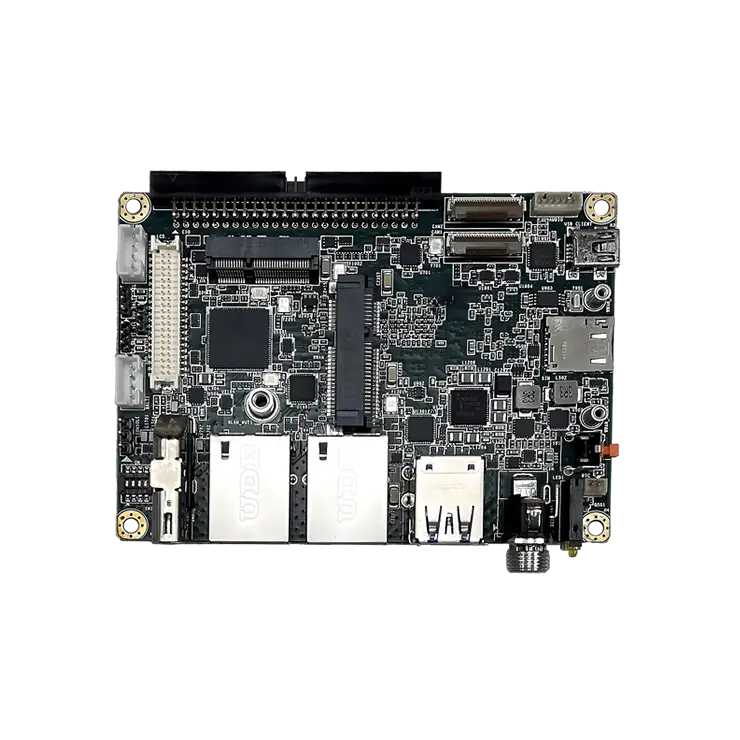

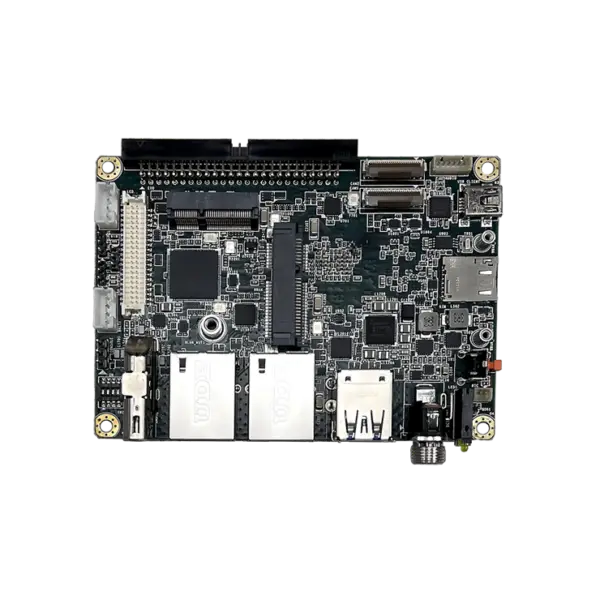

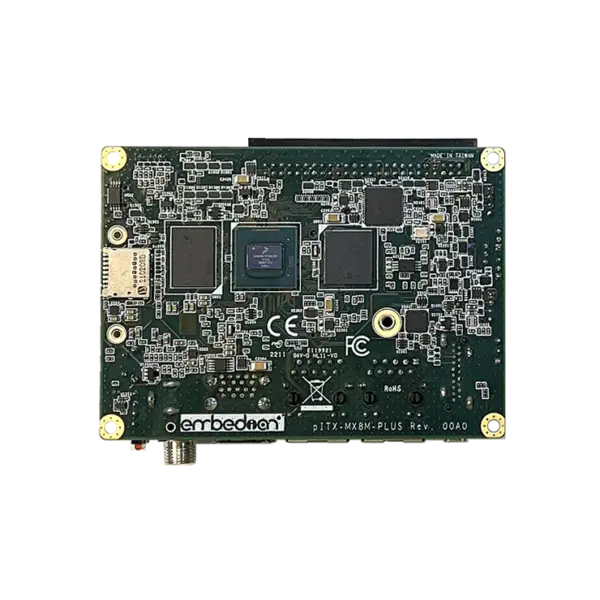

pITX-MX8M-PLUS NXP pico-ITX SBC

  • Quad/Dual-core ARM Cortex-A53, 1.8GHz
  • Real-time ARM Cortex-M7 co-processor, 800MHz
  • Integrated 2.3 TOPS AI/ML Neural Processing Unit
  • pico-ITX (100mm x 72mm x 19mm) Form Factor and passive cooling solution
  • Availability guaranteed until 2038
Feature Highlights
SMARC logo
  • 2GB,4GB or 6GB LPDDR4 and 16GB eMMC
  • HDMI (4Kp30), 24-bit dual-channel LVDS (1080p), MIPI-DSI (1920x1440p60) and 2 x MIPI-CSI (2-LANE and 4-LANE)
  • GPU (OpenGL ES 3.0, Open CL 1.2, Vulkan)
  • VPU (Video Decode: 1080p60, h.265/4, VP9, VP8; Video Encode: 1080p60, h.265/4)
  • 2 x GbE LANs (one with w/TSN), 2 x USB 3.0, , TPM, 1 x USB OTG, microSD, SIM and AUDIO
  • 1 x M.2 (USB 2.0/I2C/UART/PCIe/UART/SDIO/I2S) and 1 x mPCIe (USB 3.1 and USB 2.0)
  • 2mm 50P I/O expansion box headers (4 x UARTs, 1 x USB 3.1, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)
  • Wide temperature range of -40oC to 85oC
Yocto Project, Linux, Android and RTOS
SMARC logo
  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project BSP and U-Boot
  • Android
  • Ubuntu and Debian
  • Continuous BSP updates and maintenance
Speed Up your Product Design
  • Ready to use single board computers
  • The 50-pin expansion connector enhances the diversity and flexibility of the product.
  • Reference Schematic for 50-pin I/O board

hardware document Specifications

Technical Information
Form Factor
pico-ITX
Dimension (W x L x H)
100mm x 72mm x 19mm
CPU
  • NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz
  • Real-time 800MHz ARM Cortex-M7
GPU
  • GC7000 Ultra Lite (3D) and GC520L (2D)
  • Supports OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 and G2D
  • Supports upto 4Kp30 resolutions
VPU
  • Video Decode: 1080p60, h.265/4, VP9, VP8
  • Video Encode: 1080p60, h.265/4
Main Memory
  • 32-bit 2GB/4GB/6GB LPDDR4 up to 3200MT/s
  • 16GB eMMC (5.x) onboard
  • AT24C32 EEPROM onboard
NPU
  • 2.3 TOP/s Neural Network performance
  • Keyword detect, noise reduction, beamforming
  • Speech recognition (i.e. Deep Speech 2)
  • Image recognition (i.e. ResNet-50)
Display
  • HDMI 2.0a connector (up to 4Kp30)
  • Dual Channel LVDS connector (up to 1920x1200@60Hz) Backlight Power 5V or 12V, Max. 1.5A
  • MIPI DSI (up to 1920x1440p60) shared with second channel LVDS interface
TPM
Support TPM 2.0
MIPI-CSI Camera Connector
  • 1 x 2-lane and 1 x 4-lane MIPI-CSI
  • 2 x 0.5mm 24P FPC(V) Connector on the rear side
M.2 Type 2230 Key E Connector
  • Support 1 x 4-bit SDIO signals
  • Support 1 x USB 2.0 signals
  • Support 1 x 4-wire UART signals
  • Support 1 x I2C signals
  • Support 1 x PCIe signals
  • Support 1 x I2S signals
mPCIe Connector
  • Support 1 x USB 3.1 signals
  • Support 1 x USB 2.0 signals
2 x Ethernet (RJ45)
  • Chipset: NXP i.MX8M Plus integrated RGMII (one supports QoS with TSN)
  • One supports QoS with TSN
  • Speed: 10/100/1000 Mbps
  • PHY: Realtek RTL-8211FD-CG
microSD Connector
One microSD Connector
  • Support 1 x 4-bit microSD Connector
nanoSIM card Socket
  • 1 x Nano SIM Card Socket
USB
  • One USB OTG 2.0 Connector (Mini Type-B)
  • Two USB 3.1 Host Ports (Type A)
  • One USB 2.0 signals on mPCIe
  • One USB 3.1 signals on mPCIe
  • One USB 2.0 signals on M.2
  • One USB 3.1 host signals and three USB 2.0 host signals on EIO 50-pin 2.0mm expansion box header
Rear I/O Expansion Header
EIO50 50-pin 2.00mm Box Header
  • 4 x UARTs
  • 1 x USB 3.1
  • 2 x USB 2.0
  • 2 x I2C
  • 1 x SPI
  • 6 x GPIOs
  • 2 x CAN-FD
LED
  • 1 x Green Power LED
  • 1 x Yellow Programmable LED
Reset
  • 1 Reset Button
Watchdog
  • Chipset: TI TPS3828-33DBVR
  • 200ms timeout
Audio
  • Audio Codec: WM8960
  • Headphone Out
  • Microphone In
UARTs
Six UARTS
  • 1 x 2-wire on debug header
  • 1 x 4-wire on M.2 Connector
  • 1 x 4-wire and 3 x 2-wire on EIO 50-pin 2.0mm expansion box header
Real-Time Clock (RTC)
External Seico S35390A RTC controller on module
Expansions
  • 1 x M.2 2230 Key E Slot (USB 2.0/I2C/UART/PCIe/UART/SDIO/I2S)
  • 1 x mPCIe (USB 2.0 and USB 3.1)
  • EIO50 50-pin 2.00mm Box Header (4 x UARTs, 1 x USB 3.1, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)
  • SD Socket: 1 x Micro SD Socket
  • SIM Socket: 1 NanoSIM Socket
Power
  • Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)
  • AT mode
  • Power Consumption: 7.21 W
Boot Source Select
Three pins to allow selection from carrier board Select options include to boot from one of the following:
  • eMMC Flash (Default)
  • microSD Card (Recovery)
Environment
Environment
  • Operational Temperature: 0oC ~ 60oC (Commercial)/-40oC ~ 85oC (Industrial)
  • Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Mechanical
  • Dimensions: 100 x 72 x 19mm
  • Weight: 0.05Kg
Certifications
Certifications
Certifications: CE/ FCC Class B

hardware document Design Resources



hardware document Software Guides

Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6

hardware document Ordering Information

Part Number
1
  • 2G: 2GB LPDDR4x
  • 4G: 4GB LPDDR4
  • 6G: 6GB LPDDR4 (only on request)
2
  • I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
Example
  • Part Number: pITX-MX8M-PLUS-2G-I

Description: pITX-MX8M-PLUS pico-ITX SBC with 2GB LPDDR4x and Industrial Temperature (-40oC ~ 85oC)

  • Part Number: pITX-MX8M-PLUS-4G

Description: pITX-MX8M-PLUS pico-ITX SBC with 4GB LPDDR4x and commercial temperature.)

Packing List
  • 1 x pITX-MX8M-PLUS
  • 1 x RTC battery and cable
Optional Accessaries
Heat Sink
  • P/N: VTT-HS-9A981-A1

Description: Heak sink for pITX-MX8M-PLUS SBC

50P I/O Expansion Board
  • P/N: pITX-IOB-2201

Features:

1 x USB 3.0+2.0 dual-stack Type A connector

1 x USB 2.0 Type A Connector

1 x SPI Header

3 x RS232, 1 x RS485

2 x CAN-FD

6 x GPIO (-24V-24V)

2 x 2-pin I2C 2.0mm Header

Capacitity Touch RST and INT Header

Dimension: 146mm x 31mm

Audio Cable
  • P/N: 125021500AUD-00

Description: 6-pin 1.25mm Audio Connector to Audio Jack (HP Out, Mic In and Line In) Cable

7-inch LVDS display
  • P/N: 125040700LCD-00

Description: 7-inch LVDS Display G070VW01 V0

7-inch LVDS Cable
  • P/N: 125023000LVD-00

Description: LCD Connector to 7-inch LVDS Display G070VW01 V0 LVDS connector cable, 300mm

7-inch LVDS Backlight Cable
  • P/N: 125022000BKT-00

Description: BKLT0 or BKLT1 Connector to 7-inch LVDS Display G070VW01 V0 backlight connector cable, 200mm

M.2 802.11a/b/g/n/ac WiFi/BT Module (Azurware)
  • P/N: 12605M200ABG-00

Description: M.2 WiFi/BT Module (IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 5.3 Combo Module with 88W8997 chipset)

Dipole Antenna
  • P/N: 126010101245-00

Description: Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M BLK

Antenna Cable
  • P/N: 12506100003HF4-00

Description: M.2 Wifi module I-PEX MHF4 connector to Antenna Cable, 100mm.
