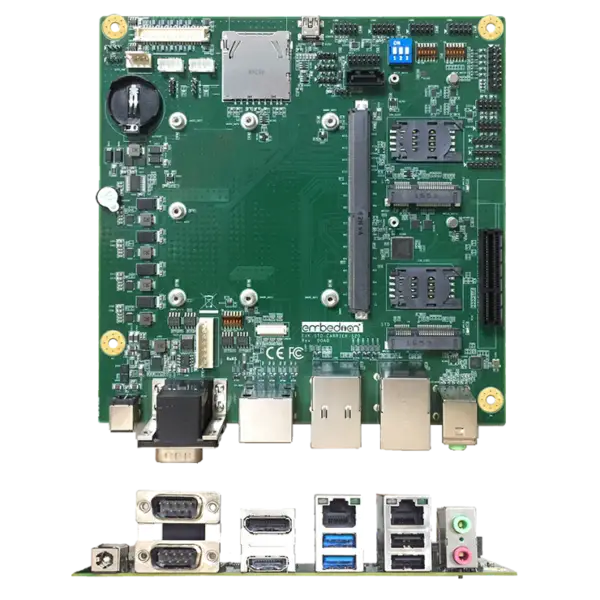

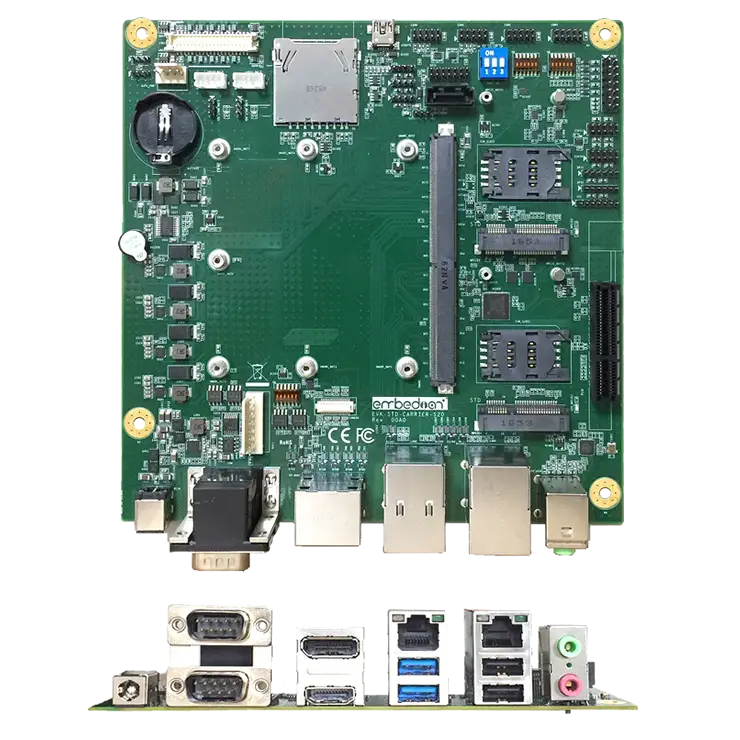

EVK-STD-CARRIER-S20 Evaluation Carrier
- Flexible prototyping vehicle
- Manufacturing test platform
- An "application ready" single board computer. (together with SMARC module)
- Dimensions: 170mm x 170mm (L x W)
- Availability guaranteed until 2038
Feature Highlights
- DC +12V ~ +24V Power input with 2.5mm DC Jack
- Accept 1.8V VDDIO SMARC 2.0 compliant module
- LVDS LCD backlight control signals
- RTC backup battery holder (CR2302)
- Buzzer
- single/dual-channel LVDS, HDMI and DisplayPort
- 2 x 10/100/1000Mbps RJ-45 connectors with magnets
- 2 x USB 2.0 host type A connectors, 2 x USB 3.0 host type A connectors, 1 x mini USB client connector
- 2 x CAN BUS headers, 4 x RS232 (Two with DB9 can be configured as RS422/485, two with headers), 1 x 2x7-pin GPIO header, 3 x I2C headers (for capacitive touch), 2 x SPI headers and 2 x ESPI headers
- 3.5mm Audio Jack for Microphone and Headphone
- 1 x SDHC connector
- 1 x SATA Connector
- 1 x SATA Power Connector
- 2-LANE and 4-LANE CAMERA interfaces for camera moduled
- 1 x PCIex4 and 2 x mini-PCIe Connectors
- A single 4KB EEPROM is provided on I2C0 that holds the board information. This information includes board name, serial number, and revision information.
- 1 x external watchdog reset
- jumpers and switches for LCD 3.3V or 5V voltage, boot selection, RS232 or RS485 selection, GPIO and USB path selection
- Form Factor: mini-ITX (170mm x 170mm, L x W)
Document Deliverable
- SMARC 2.0 Carrier Board Design Guide
- User's Manual
- Carrier Board Reference Schematics (pdf and OrCAD format)
- Carrier Board Schematics Checklist
- PinMux File
Ordering Information
- P/N: EVK-STD-CARRIER-S20
Packing List
- 1 x EVK-STD-CARRIER-S20 carrier board
- 4 x M2.5 screws
- 1 x 16GB SDHC card with image pre-installed (only when purchase together with Embedian SMARC modules)
- 1 x LVDS cable (for 7-inch AUO G070VW01 v0)
- 1 x LVDS LCD Backlight cable (for 7-inch AUO G070VW01 v0)
- 1 x Heat Sink (Only when purchase together with Embedian SMARC modules that need heat sink)
- 1 x 12V/3.5A Power Supply
- 1 x SATA Power cable (Only when purchase together with Embedian SMARC modules that have SATA interface)
- 1 x 10-way box header to DB9 cable (P/N: 12505200BTD-00)
