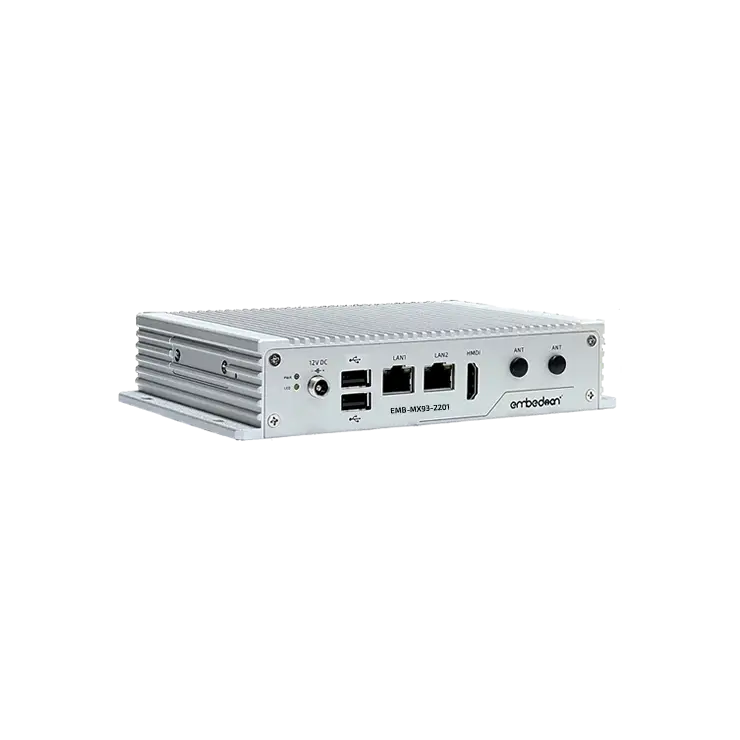

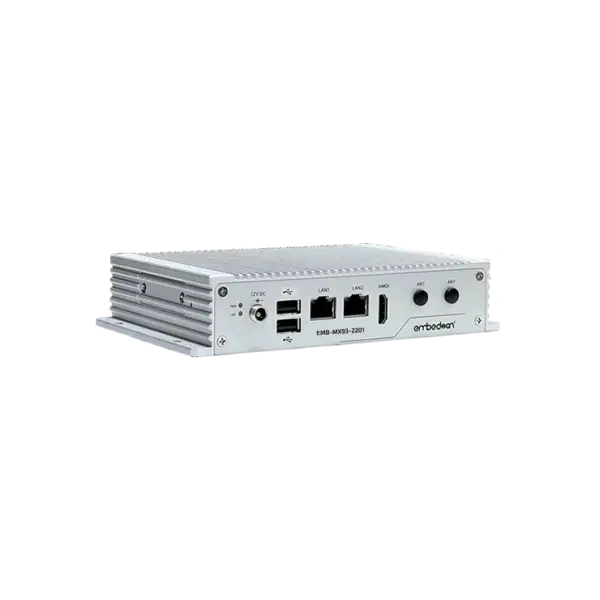

EMB-MX93-2201 NXP Box Computer
- Dual-core ARM Cortex-A55, 1.7GHz
- Real-time ARM Cortex-M33 co-processor, 250MHz
- Integrated 0.5 TOPS AI/ML Neural Processing Unit
- Dimensions: 109.78mm x 177.25mm x 36.35mm (L x W x H)
- Availability guaranteed until 2038
Feature Highlights
- 2GB LPDDR4 and 16GB eMMC
- HDMI (1080p60)
- 2 x GbE LANs (one with w/TSN), 3 x USB 2.0 Host, 1 x USB 2.0 OTG

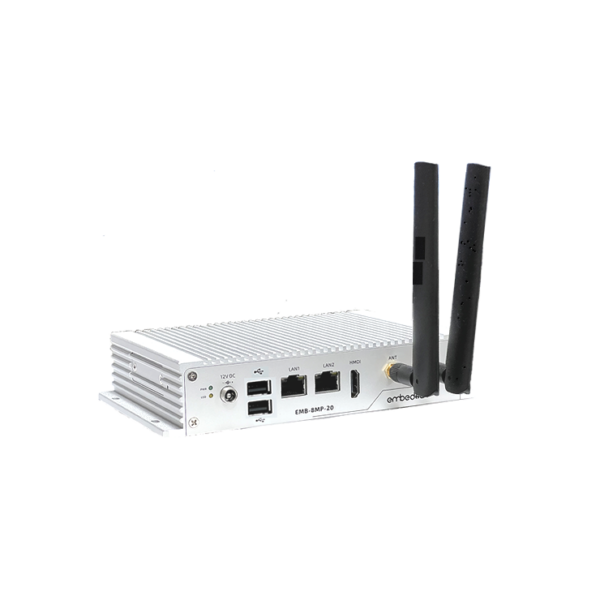

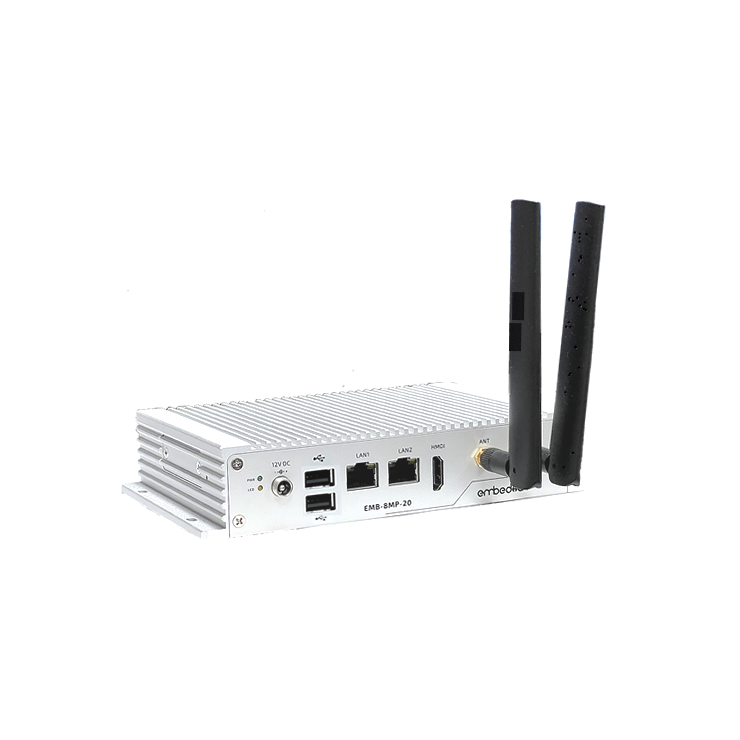

- WiFi Ready
- TPM, microSD, 3 x RS232, 1 x RS422/485, 2 x CAN, 6 x GPIOs
- Wide temperature range of -40oC to 85oC
Yocto Project, Linux and RTOS
- Full Board Support Package and ready-to-run images
- Linux kernel, Yocto Project BSP and U-Boot
- Continuous BSP updates and maintenance
Speed Up your Product Design
- Ready to use single board computers
Specifications
Technical Information
Dimension (W x L x H)
177.25mm x 109.78mm x 36.35mm
CPU
- NXP i.MX93 2 x Cortex-A55 @1.7GHz
- Real-time 250MHz ARM Cortex-M33
- 0.5 TOPS ARM Ethos-U65 microNPU Neural Network
- PxP G2D GPU
Main Memory
- 16-bit 2GB LPDDR4x up to 3200MT/s
- 16GB eMMC (5.x) onboard
- AT24C32 EEPROM onboard
Display
- HDMI 2.0a connector (up to 1080p60)
2 x Ethernet (RJ45)
- Chipset: NXP i.MX8M Plus integrated RGMII (one supports QoS with TSN)
- One supports QoS with TSN
- Speed: 10/100/1000 Mbps
- PHY: Realtek RTL-8211FD-CG
microSD Connector
One microSD Connector
- Support 1 x 4-bit microSD Connector
USB
- One USB OTG 2.0 Connector (Mini Type-B)
- Three USB 2.0 Host Ports (Type A)
LED
- 1 x Green Power LED
- 1 x Yellow Programmable LED
Reset
- 1 Reset Button

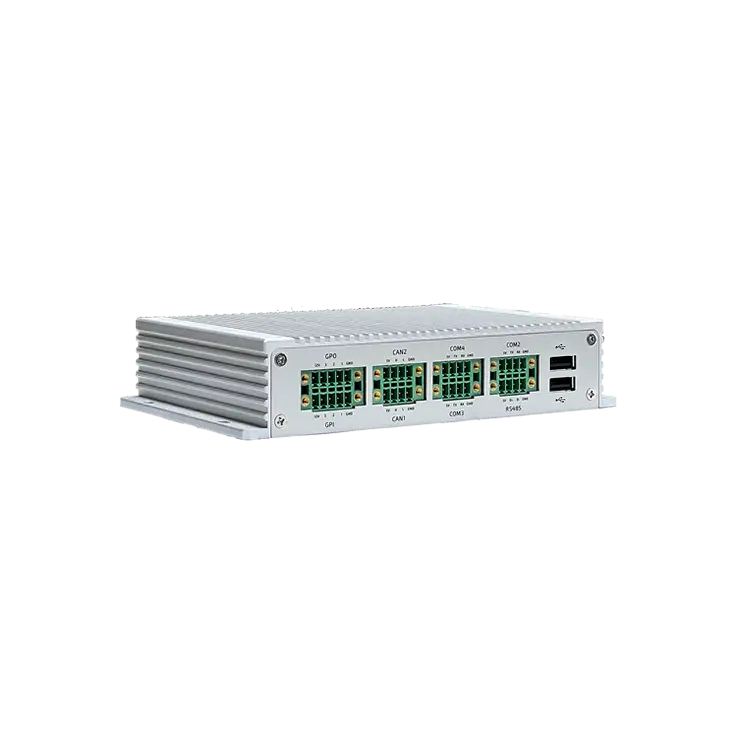

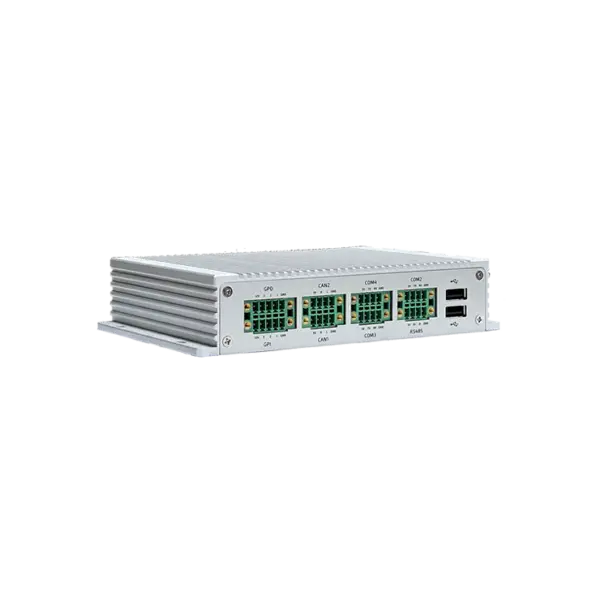

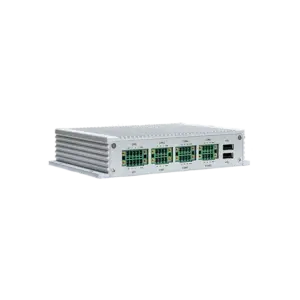

Additional I/O
- 3 x RS232s
- 1 x RS422/485
- 2 x CAN-FD
- 6 x GPIOs (Push-Pull)
- Real-Time Clock
Power
- Power Supply Voltage: 12V DC-IN by lockable DC Jack
- AT or ATX mode
- Power Consumption: 3.7 W
Boot Source Select
Three pins to allow selection from carrier board
Select options include to boot from one of the following:
- eMMC Flash (Default)
- microSD Card (Recovery)
Environment
Environment
- Operational Temperature: 0oC ~ 60oC (Commercial)/-40oC ~ 85oC (Industrial)
- Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Mechanical
- Dimensions (W x L x H): 177.25mm x 109.78mm x 36.35mm
- Weight: 1.5Kg
Certifications
Certifications
Certifications: CE/ FCC Class B
Design Resources
Software Guides
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Yocto Build
Version
Codename
U-Boot
Branch
Commit ID
Linux
Branch
Commit ID
Pre-Build Image
md5sum
4.2
Mickledore
2023.04
emb_lf_v2023.04
Commit ID
6.1.55
emb_lf-6.1.y
Commit ID
Pre-Build Image
md5sum
Item 3
Item 4
Item 5
Item 6
Item 4
Item 5
Item 6
Ordering Information
1
- I: Industrial Temperature (-40oC ~ 85oC); Leave it blank if commercial temperature.
2
- WIFI: 802.11a/b/g/n/ac Wireless LAN 2T2R; Leave it blank if not needed.
Example
- Part Number: EMB-MXM93-2201
Description: EMB-MXM93-2201 Box Computer with 2GB LPDDR4, 16GB eMMC and Commercial Temperature (0oC ~ 60oC)
- Part Number: EMB-MXM93-2201-I-WIFI
Description: EMB-MXM93-2201 Box Computer with 2GB LPDDR4, 16GB eMMC, Industrial Temperature (-40oC ~ 85oC) and 802.11a/b/g/n/ac Wireless LAN 2T2R
Packing List
- 1 x EMB-MXM93-2201 Box Computer
